June 4th 2009

Piling hexagons

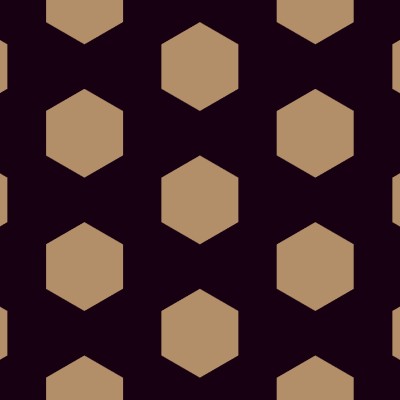

As I tried to explain here, all of my images are constructed by piling simple patterns. Piling patterns is a truely addictive activity. It's impossible to predict what you will get and, provided the pattern is simple enough, the result is bound to be esthetically pleasant. Consider for instance the hexagonal tiling by black and brownish hexagons shown below.
Fig1

The hexagons are colored such that around each vertice of the tiling, there are always two black hexagons and a brown one. Such a coloring is called Archimedean. For those understanding these words, this coloring is even uniform, because the symmetry group of the colored tiling acts transitively on the vertices. Anyway, it is a desperately simple pattern. Let us see what happen when we pile several copies of it, each copy being three times smaller than the previous one. Adding three copies, we get these nice shapes.
Fig2

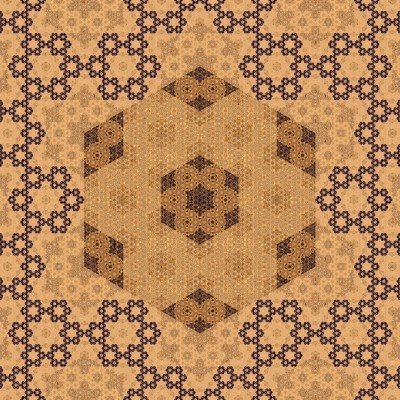

Going on and adding enough copies so that the smallest ones cannot be distinguished anymore, we get this :
Fig3

Among other things, one can spot Koch snowflakes ! Even better, a closer look reveals a tiling of the plane by Koch snowflakes. Actually, the procedure consisting of removing from the plane the (open) brown hexagons from each copies of the tiling results in a fractal subset of the plane (pictured in black in the image above) which is the boundary of the tiling of the plane by the Koch snowflakes. There are many tilings by Koch Snowflakes (see for instance here), but I counldn't find this one... I would guess that the boundary of this tiling can be generated as an iterated function system. Anyway, here is a polished image to explore.
